QQJ2200/2500 Multi-blade Stone Cutting Machine Granite And Marble Auto Cutting Machine

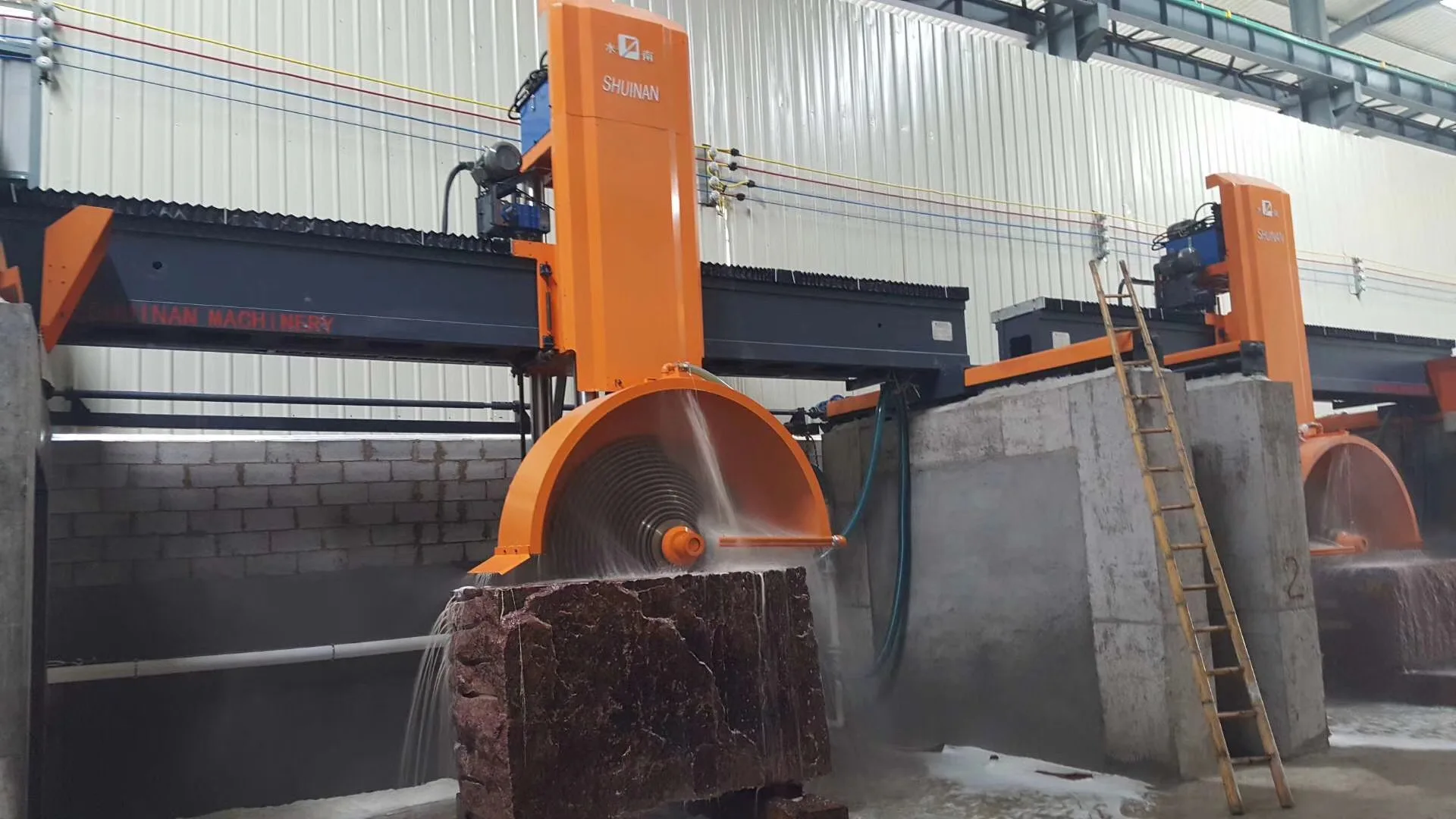

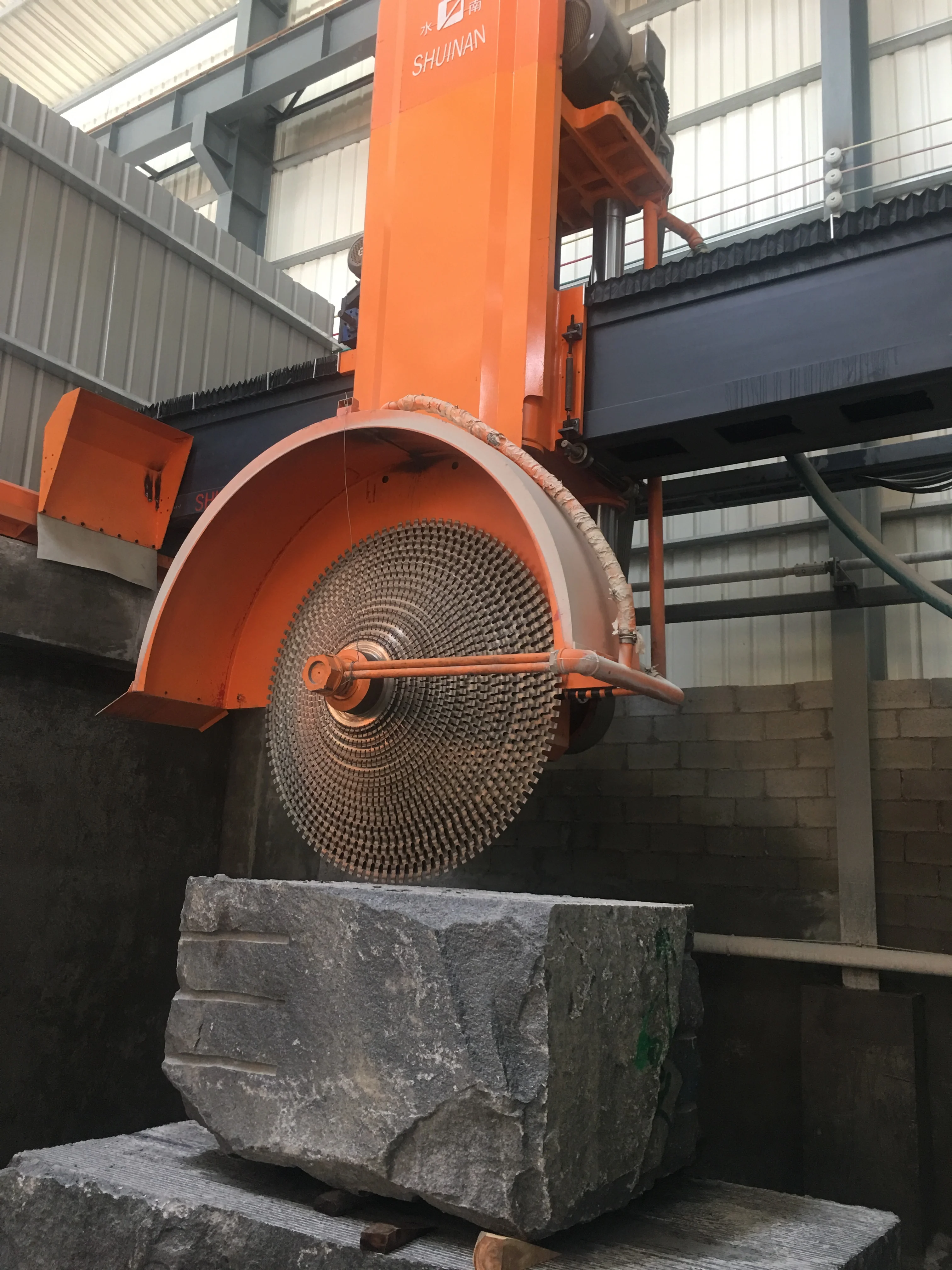

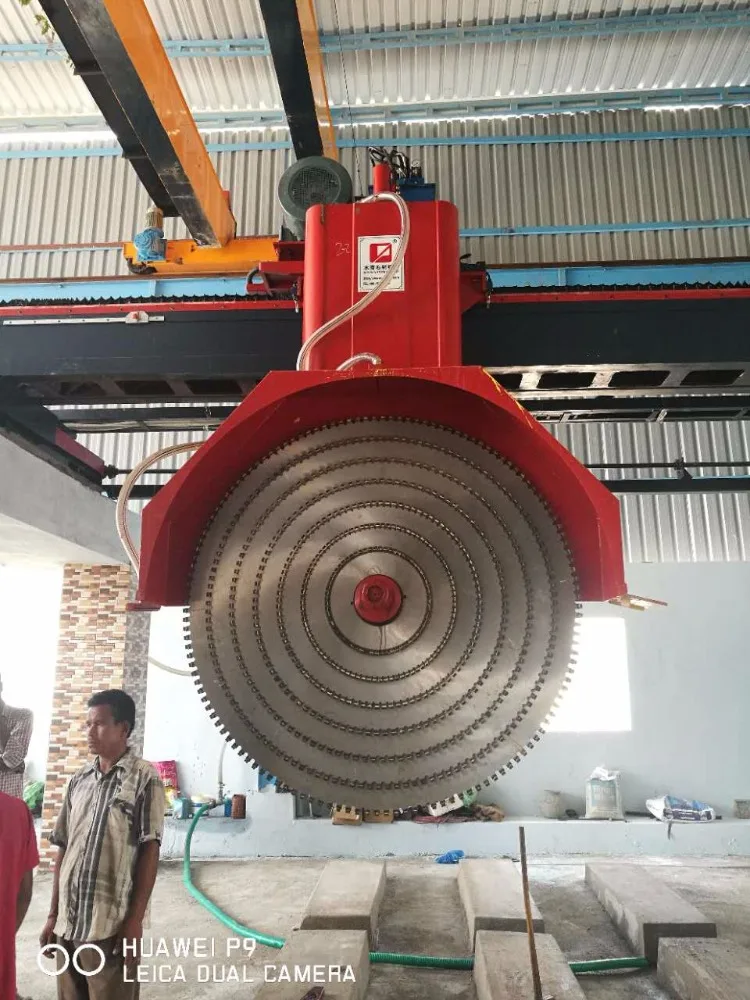

QQJ-2200/2500/3000 Shuinan multi-blade block bridge type cutting machine.It is used for cutting granite, lava stone, travertine and marble blocks.



This is a classic and practical bridge saw, which is used to cut blocks into thin or thick slabs. It is very popular in China for its high efficiency, good stability and long service life.





Controlled by ultra-high precision rotary encoder , high precision screw nut drive, fragmented accurately;

The left and right walker is controlled by the frequency converter, can be adjusted according to the material of the stone ,to ensure cut the slab high efficiency and high quality;

Independent research and development of hydraulic system, four-guider column structure,guider column is chrome-plated, plus sealing guide sleeve, the sleeve is designed with a multi-layer seal, waterproof, dust proof, oil leakage proof, with a small gap. The whole machine is beautiful, improve service life.

Humanized man-machine operation interface, easy to operate, fragmented accurately, flatness, high efficiency, especially for high-value granite and marble.











Name	Unit	QQJ-2200	QQJ-2500	QQJ-3000
Max.blade Diameter	mm	Ф2200	Ф2500	Ф3000
Max.cutting length	mm	3800	3500	3000
Max.cutting width	mm	2100	2100	2100
Blade lifting stoke	mm	1350	1350	1350
Max.beam size	mm	7500	8000	8500
Water consumption	m/h³	15	15	15
Powre of main motor	kw	45/55 Permanent - magnet high - efficiency motors can be added as an option
Total	Kw	56/66	56/66	56/66
Overall dimension(LxWxH)	mm	7700x4400x3700	8200/4400/3700	8700/4400/3700
Approxomate weight	Kg	12000	14000	15000









Quanzhou Hiende Mechanical And Electrical Technology Development Co., Ltd. (formerly: Fujian Shuinan Stone Machinery Co.,Ltd.) was founded in 1997,with a long history and good reputation in domestic and international stone machinery manufacturing industry .After 20 years of innovation and technology enterprises in stone mining and processing equipment with well-known brands "SHUINAN" .

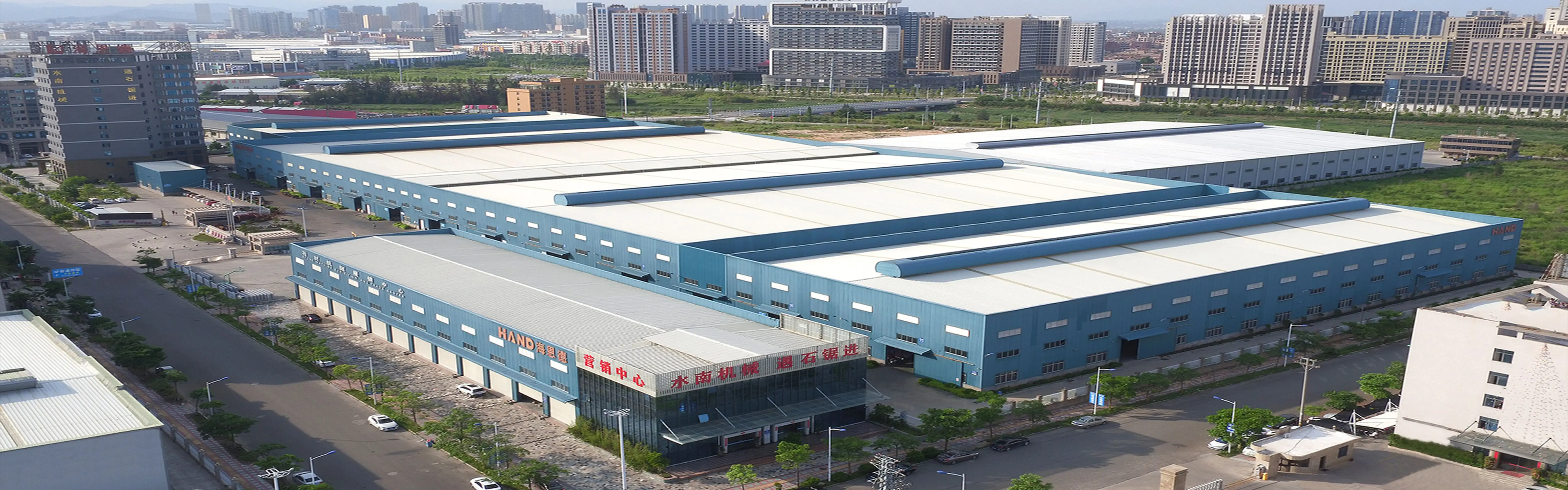

Hiende is located in Chinese stone capital - Shuitou.The new factory covers an area of 60000 square meter,with the most advanced mechanical processing equipment,warehousing logistics systems, assembly production lines in stone machinery industry. Hiende has a team with more than 300 people of professional research and development, production,sales and service.

Hiende/Shuinan pass ISO9001:2015 quality system certification,CE safety certification, TUV certification , the annual production capacity is 3000 units/sets.With good quality and service,our machines have been sold to more than 30 countries.
