Shuinan YKZ Series High-efficiency Double-blade Granite And Marble Stone Mining Machine





1.It has a compact structure, with mechanical system, hydraulic system and electrical system integrated, high degree of automation, simple operation and easy-to-use feature.

2.The cylindrical guide rail is fully sealed to ensure that the guide rail no pollution and machine has an original lubrication system, so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced. It is a mine quarrying machine with significantly increased comprehensive benefits.

3.Unique cylindrical guide, hydraulic elevator design and super wide chassis, so the structure is more stable and longer useful life.

4.With the super giant saw blades, it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.

6.This machine model adopts a new type of four-wheel drive walking mechanism, eliminating the need for routine maintenance work. Meanwhile, it avoids the potential safety hazards that are likely to occur due to chain breakage in traditional chain-type transmissions. It operates at a constant speed, which significantly increases the cutting speed of the machine, reduces the wear and tear of the cutting tools to a large extent, and overall reduces the power consumption rate of the machine.

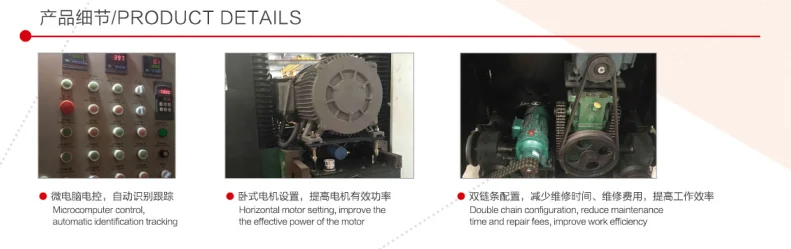

7.The micro - computer automatically tracks. When the motor is over - loaded or the tool is clamped, it automatically decelerates in advance, effectively preventing the risk of burning the motor due to tool clamping, improving the service life of the motor, avoiding losses caused by motor replacement, and greatly improving production efficiency









Name	Unit	YKZ-1360/1900	YKZ-1500/2000	YKZ-1950/2450	YKZ-2600/3100
Diameter	mm	Ф2200x2-Ф3600x2	Ф2200x2-Ф3600x2	Ф2200x2-Ф4800x2	Ф2400x2-Ф4800x2
Max cutting depth	mm	1550	1550	2150	2150
Scope od cutting width	mm	1360-1900	1500-2000	1950-2450	2600-3100
Water consumption	m³/h	5	5	5	5
Power of main-drive	Kw	55/65x2	55/65x2	55/65x2	55/65x2
Total power	Kw	118.5/138.5	118.5/138.5	118.5/138.5	118.5/138.5
Center distance of rail	mm	1140	1290	1670	2200
Overall dimension(LxWxH)	mm	3550x1450x2850	3550x1600x2850	5200x2100x3600	5200x2700x3600
Approximate weight	Kg	7500-8500	7500-8500	10000-11000	11000-12000























Quanzhou Hiende Mechanical And Electrical Technology Development Co., Ltd. (formerly: Fujian Shuinan Stone Machinery Co.,Ltd.) was founded in 1997,with a long history and good reputation in domestic and international stone machinery manufacturing industry .After 18 years of innovation and technology enterprises in stone mining and processing equipment with well-known brands "SHUINAN" .

Hiende is located in Chinese stone capital - Shuitou.The new factory covers an area of 60000 m2,with the most advanced mechanical processing equipment,warehousing logistics systems, assembly production lines in stone machinery industry. Hiende has a team with more than 300 people of professional research and development, production,sales and service.

Hiende/Shuinan pass ISO9001:2008 quality system certification,CE safety certification, TUVcertification , the annual production capacity is 3000 units/sets.With good quality and service,our machines have been sold to more than 30 countries.
